Product Overview

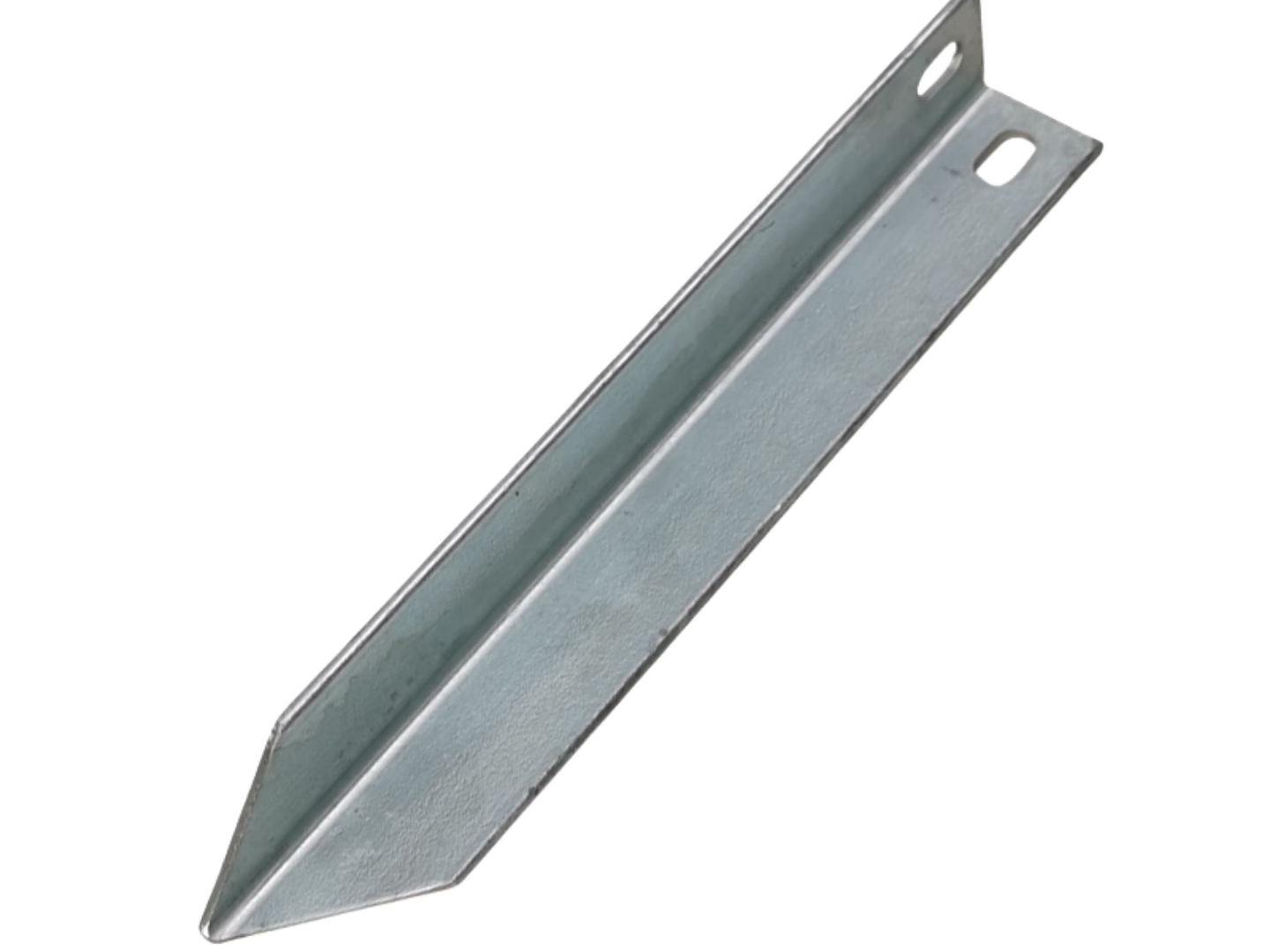

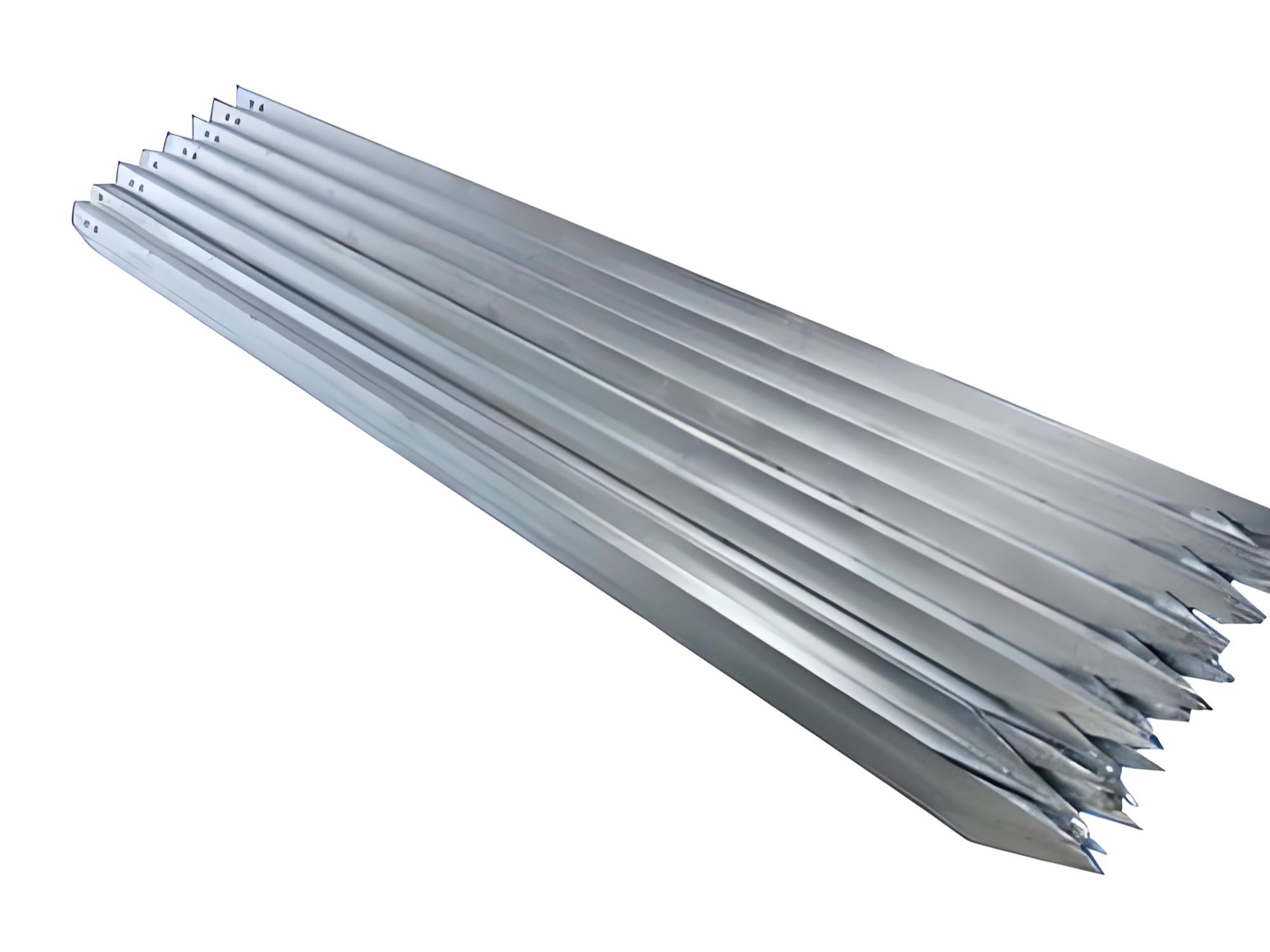

The Galvanized Steel Angle Ground Electrode (AE Series Steel Angle Earth Rod) is a foundational deep-earthing component widely utilized in power transmission, substation grounding grids, and lightning protection systems. Manufactured by YiHao Power, these angle electrodes provide a low-resistance path to discharge high fault currents, lightning surges, and static charges safely into the earth.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | AE Series Steel Angle Ground Electrodes / Earth Rods |
| Body Material | High-Tensile Carbon Steel (Q235 / Grade 4.8) |
| Surface Protection | Hot-Dip Galvanized (HDG) to ASTM A153 / ISO 1461 |
| Standard Dimensions | 50x50x5 mm / 63x63x6 mm (Length: 1.5m, 2.0m, 2.5m, 3.0m) |
| Standard Compliance | ISO / ASTM / IEC / BS Standards Compliant |
| Application Scope | Substation Grounding Grids, Power Pole Earthing, Lightning Protection |
Key Performance Features
- High Surface Area for Low Resistance: The angled V-profile maximizes direct surface contact with surrounding soil, significantly lowering electrical ground resistance compared to standard round rods.
- Deep Underground Soil Anti-Corrosion: Thick zinc layer forms a protective barrier against soil acidity, groundwater chemical reactions, and galvanic stray currents.
- Fault Current Dissipation Capacity: Designed to carry massive short-circuit surge currents safely into the ground without thermal distortion or structural degradation.
Quality Assurance
Every batch of steel angle ground electrodes manufactured by YiHao Power undergoes strict quality control, including dimension tolerance verification, driving impact fatigue tests, and hot-dip galvanizing coating thickness checks.
