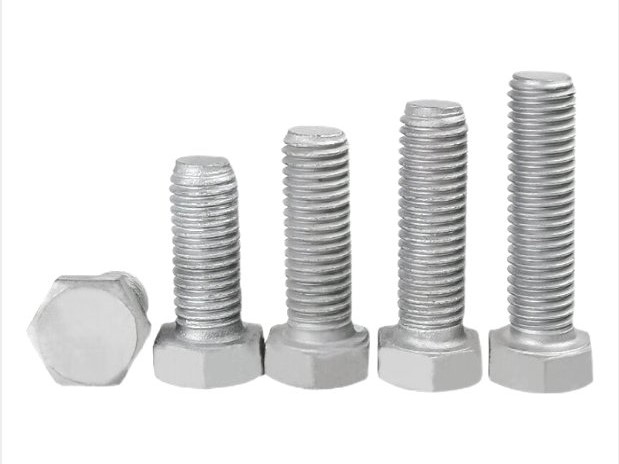

Hot dip Galvanized Steel Hex Bolt set for power hardware and structural grounding
,

Galvanized Steel Hex Bolt for Power Hardware & Earthing | YiHaoPower

The Galvanized Steel Hex Bolt is a heavy-duty structural fastener engineered for power transmission towers, electrical hardware assemblies, and earthing grid connections.

  • High-Grade Carbon Steel & Stainless Options: Available in heavy hot-dip galvanized carbon steel for general utility infrastructure and A2-70 / A4-70 stainless steel for extreme corrosive environments.
  • Heavy Hot-Dip Galvanized Coating: Thick, uniform zinc barrier resists atmospheric oxidation, groundwater exposure, and chemical degradation in underground soil.
  • High Tensile & Shear Strength: Manufactured to rigid mechanical specifications to prevent thread stripping or bolt shearing under heavy structural loads.
  • Precision Machine Threads: Clean, burr-free threads ensure smooth engagement with standard hex nuts and lock washers during field assembly.

Need Specific Thread Diameters, Lengths, or Matching Nuts & Washers? Contact the YiHaoPower engineering team today for CAD drawings, technical data sheets, and direct factory wholesale quotes.

SKU: YHP-EP-HBSERIES Categories: , Tags: , , , ,

Product Overview: Galvanized Steel Hex Bolt

The Galvanized Steel Hex Bolt (HB Series Heavy Hex Fasteners) is a primary mechanical fitting widely deployed across power distribution networks, substation steel structures, cable tray supports, and earthing clamp connections. Manufactured by YiHao Power, our hex bolts are produced from premium structural carbon steel and high-grade stainless steel alloys. Designed to comply with international manufacturing and quality standards for electrical power hardware, each Galvanized Steel Hex Bolt provides exceptional tensile load capacity, long-term corrosion resistance, and dependable joint stability in severe outdoor weather conditions.

Technical Specifications

Parameter Specification
Product Series HB Series Hex Bolts & Structural Fasteners
Base Material High-Tensile Carbon Steel / Stainless Steel (A2-70, A4-70)
Surface Protection Heavy Hot-Dip Galvanized (HDG) / Bright Stainless Steel Finish
Thread Configuration Full Thread / Partial Thread (M6 to M36 Metric Sizes Available)
Standard Compliance UL / IEC / BS / ISO Standards Compliant
Application Scope Transmission Towers, Substation Hardware, Cable Tray Splices, Ground Clamps

Key Performance Features of Our Galvanized Steel Hex Bolt

  • Metallurgical Zinc Protection: The heavy hot-dip galvanizing process bonds zinc to the steel substrate, creating a self-sacrificing barrier that protects against rust even if the surface is scratched during field installation.
  • High Mechanical Integrity & Torque Resistance: Cold-forged or hot-forged bolt heads resist rounding under heavy wrench torque, securing critical mechanical electrical joints against vibration loosening.
  • A2-70 & A4-70 Stainless Options: For coastal substations or chemical environments where galvanizing is insufficient, our A2-70 (Grade 304) and A4-70 (Grade 316) stainless steel bolts offer superior acid and saltwater resistance.
  • Versatile Utility Hardware Compatibility: Designed for seamless integration with heavy hex nuts, flat washers, spring washers, and grounding plate clamps.

Installation Guidelines for Fastener Assemblies

Proper installation of a Galvanized Steel Hex Bolt ensures optimal clamping force and long-term joint security. Follow these standard field practices:

  1. Hole Alignment & Surface Cleaning: Ensure mounting holes in steel members or copper ground plates are aligned without forcing the bolt threads against sharp metal edges.
  2. Washer Placement: Position a flat washer under both the bolt head and nut to distribute clamping pressure evenly across structural surfaces.
  3. Torque Tightening: Use a calibrated torque wrench to tighten the nut to specified engineering values, avoiding over-torquing which can stretch bolt shanks.

Primary Application Scenarios Across Power Facilities

Our premium power hardware fasteners are widely deployed across global infrastructure projects, including:

  • High-voltage power transmission tower crossarm and leg connections.
  • Electrical substation steel gantry and transformer mounting structures.
  • Cable tray coupler plates, ladder rack joints, and conduit support brackets.
  • Equipotential grounding busbars, terminal lug connections, and earth clamps.

Frequently Asked Questions (FAQ)

Q1: What does the A2-70 marking mean on stainless steel hex bolts?

A1: “A2” indicates Austenitic Grade 304 stainless steel, while “70” indicates a minimum tensile strength of 700 MPa, making it suitable for heavy-duty structural and electrical hardware applications.

Q2: Are hot-dip galvanized hex bolts supplied with matching galvanized nuts and washers?

A2: Yes, we provide complete fastener assemblies including overtapped HDG nuts and matching zinc-coated washers to ensure smooth thread fitment without binding.

Quality Assurance & Factory Testing

Every batch of Galvanized Steel Hex Bolt products manufactured by YiHao Power undergoes rigorous quality control inspection before dispatch. Our testing protocols include thread gauge checks, tensile proof load testing, zinc coating thickness testing, and salt spray corrosion testing.
