Product Overview
Our suspension clamp series is designed to safely suspend conductors and ground wires from insulators on overhead power transmission lines. Manufactured by YiHaoPower, this product lineup includes traditional rigid suspension clamps (XGU envelope type and XG center type) as well as preformed helical armor rod suspension assemblies, catering to diverse grid voltage levels and installation requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Available Models | XGU Series (Envelope Type), XG Series (Center Type), Preformed Type |
| Material Options | Electro-Galvanized Steel / Hot-Dip Galvanized Steel / Aluminum Alloy |
| Surface Finish | Electro-Galvanized / Hot-Dip Galvanized / Natural Polish |
| Applicable Conductor Range | 12.0 mm – 32.0 mm (Custom sizes available) |
| Application Field | High-Voltage & Medium-Voltage Overhead Transmission Lines |
Product Types & Key Features

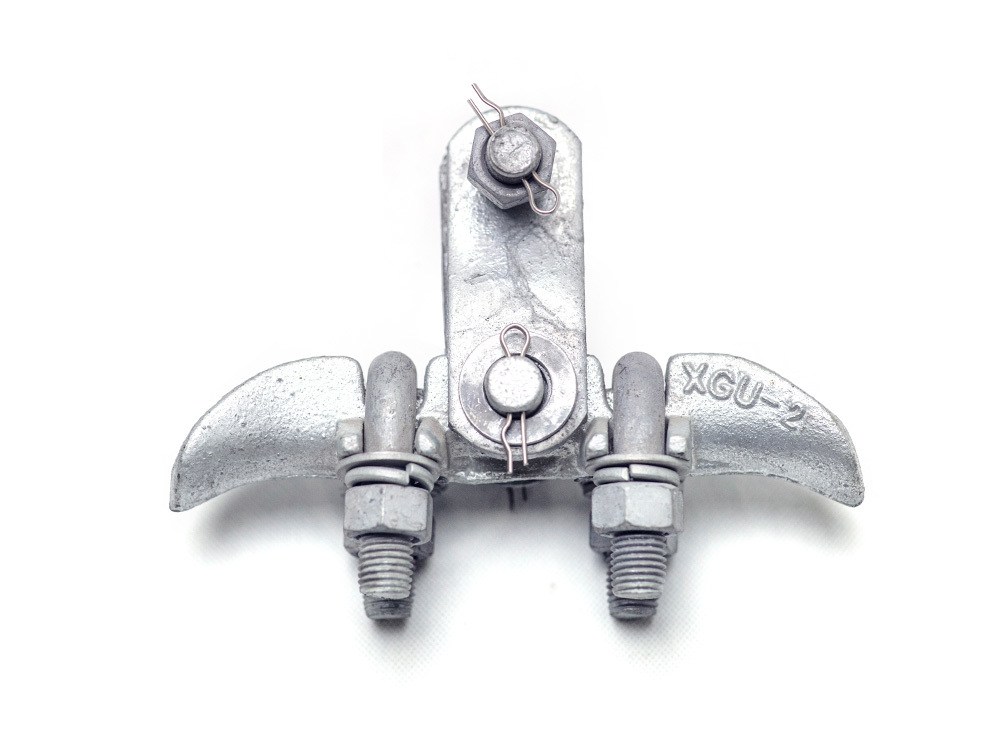

- XGU Envelope Type Suspension Clamp: Heavy-duty U-bolt clamping mechanism with hanger plate, offering high gripping strength and mechanical stability for standard power lines.

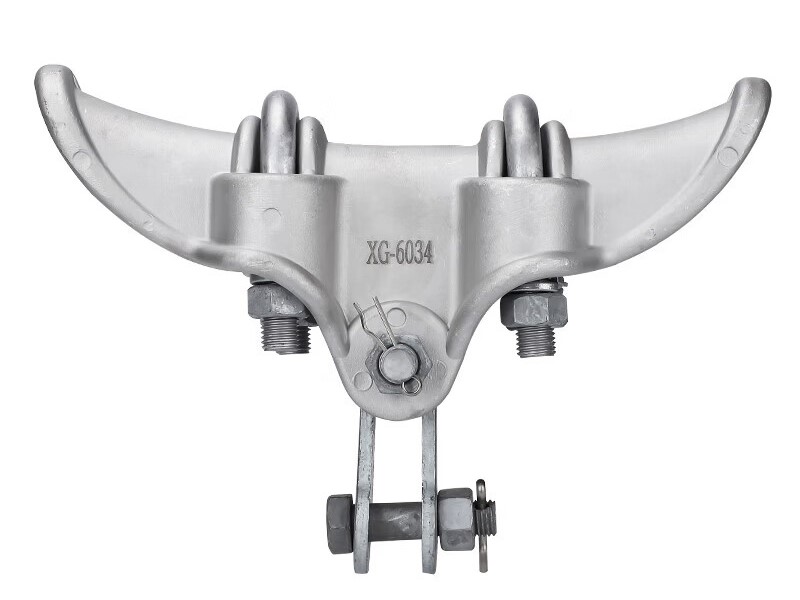

- XG Center Suspension Clamp: Clevis pin connection style providing flexible rotational movement to relieve conductor bending stress under line movement.

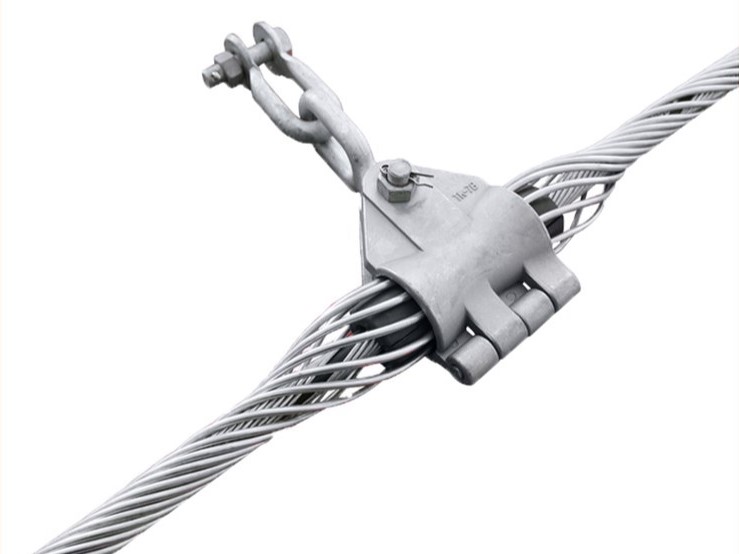

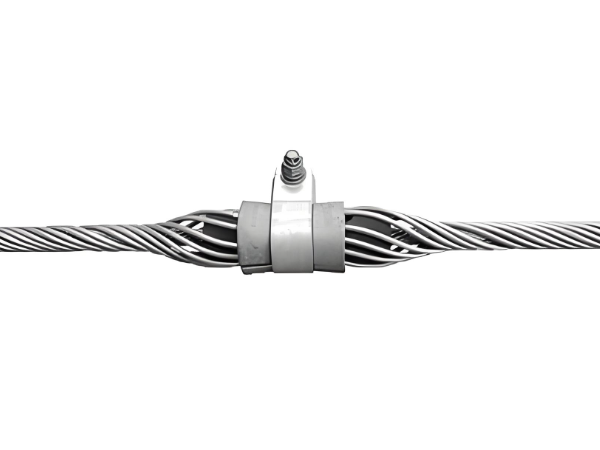

- Preformed Armor Rod Suspension Assembly: Utilizes helical armor rods wrapped around the conductor to uniformly distribute clamping force, minimizing dynamic vibration wear and corona discharge.
Quality Assurance
All suspension clamps from YiHaoPower undergo strict quality control, including dimensional checks, coating thickness tests, and mechanical slip and pull load testing to guarantee long-term field reliability.
