Product Overview
The Vibration Damper (4D, FD, and FR Series Stockbridge Damper) is an essential anti-vibration fitting used in high-voltage overhead transmission lines, distribution networks, and OPGW/ADSS optical fiber installations. Manufactured by YiHao Power, these dampers are installed near line suspension clamps to absorb dynamic energy generated by laminar wind flows, safeguarding conductor strands from fatigue failure and extending line service life.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | 4D / FD / FR / FDZ Series Stockbridge Dampers |
| Body Material | Aluminum Alloy Clamp & Carbon Steel Damper Weights |
| Messenger Wire | High-Tensile Galvanized Carbon Steel Strand |
| Surface Protection | Hot-Dip Galvanized (HDG) / Natural Polish |
| Standard Compliance | ISO / ASTM / IEC / BS Standards Compliant |
| Application Scope | Overhead Power Conductors, Earth Wires, OPGW & ADSS Cables |
Product Types & Key Features

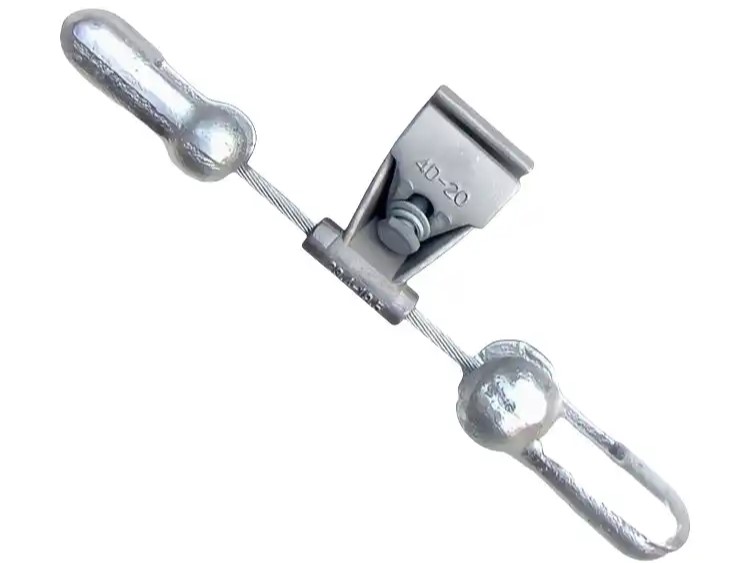

- 4D Broadband Stockbridge Damper: Features asymmetrical hammer weights and a custom-tuned steel messenger wire to dissipate energy over four distinct resonance frequency modes.

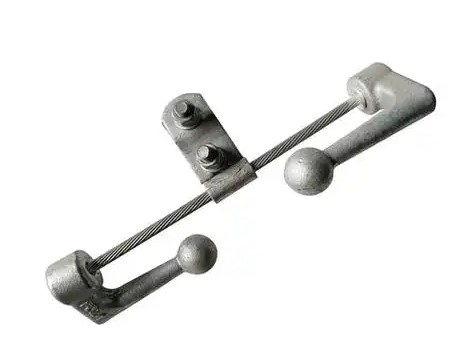

- FD / FR Dog-Bone Vibration Damper: Utilizes classical dog-bone shaped weights, offering a robust and economical solution for standard transmission line spans.
- Conductor-Friendly Aluminum Clamp: Smoothly contoured clamping jaws distribute holding pressure evenly without distorting the outer aluminum conductor strands.
Quality Assurance
Every batch of vibration dampers manufactured by YiHao Power undergoes strict quality control, including resonance frequency testing, slip grip testing, and zinc coating thickness measurements.
