Product Overview

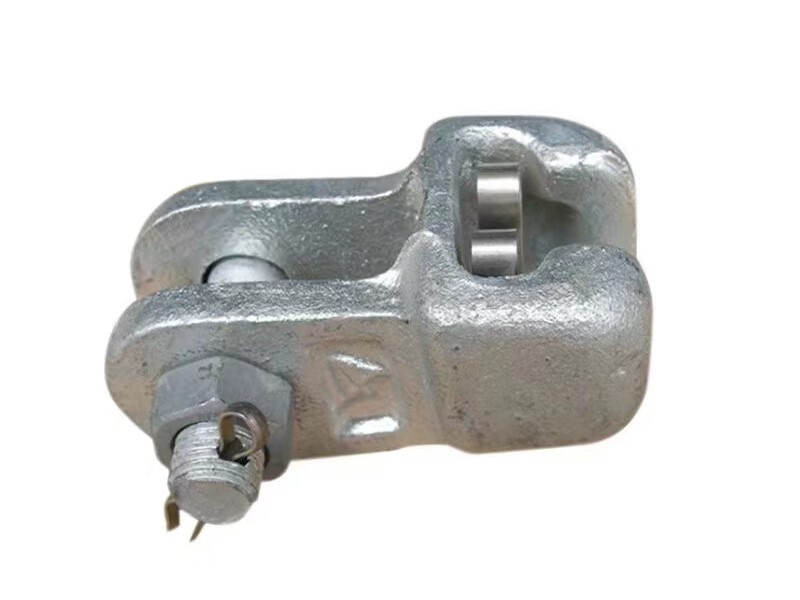

The Socket Clevis (WS Series Socket Clevis Eye) is an essential link hardware component in high-voltage overhead power transmission and distribution systems. Manufactured by YiHao Power, it is designed to connect the ball pin of a suspension or strain insulator string to a clevis-type fitting, yoke plate, or strain clamp. Its heavy-duty forged construction ensures optimal mechanical load distribution and maximum operational safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | WS Series Socket Clevis (WS-7 / WS-10 / WS-12 / WS-16 / WS-20 / WS-30) |
| Body Material | Drop-Forged Carbon Steel / Ductile Iron |
| Locking Pin / Clip | Stainless Steel / Phosphor Bronze W-Clip or R-Clip |
| Surface Finish | Hot-Dip Galvanized |
| Standard Compliance | IEC/ BS/ ANSI/ ISO |
Key Performance Features
- Precision Socket Geometry: Formed to exact tolerances to allow smooth pivoting of the insulator ball pin while maintaining full tensile strength.
- High-Reliability Clevis Fastening: Features a high-grade bolt, nut, and stainless steel cotter pin to ensure vibration-proof connection to flat plates and shackles.
- Superior Weather Resistance: Heavy zinc coating provides long-term resistance against rust, salt fog, and environmental corrosion.
Quality Assurance
Every batch of socket clevis fittings produced by YiHao Power undergoes rigorous quality control, including tensile load testing, magnetic particle testing for internal flaws, galvanizing thickness verification, and fitment checks with standard ball pins.
