Product Overview

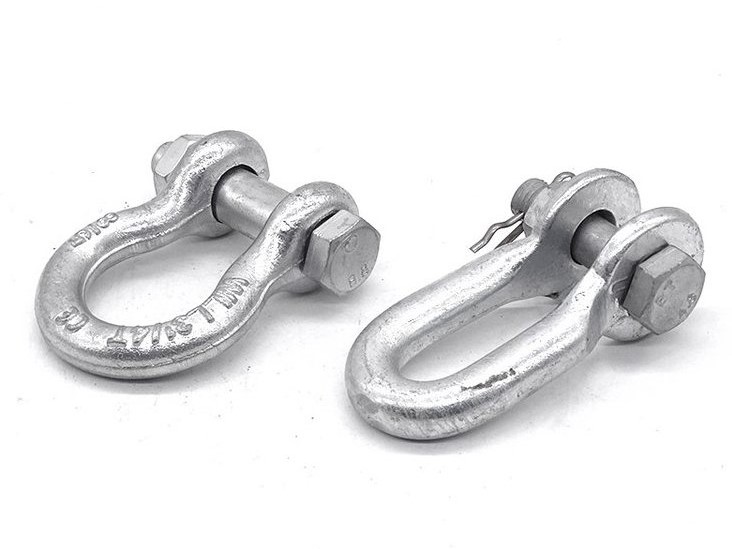

The U-Shackle (U Series U-Clevis Link) is a foundational link hardware component widely used in high-voltage overhead power transmission and distribution lines. Manufactured by YiHao Power, this versatile fitting links insulator strings, strain clamps, suspension assemblies, and tower attachment points together. Its heavy-duty forged steel body ensures balanced stress distribution across power grid networks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | U Series U-Shackle (U-7 / U-10 / U-12 / U-16 / U-20 / U-30) |
| Body Material | Carbon Steel |
| Surface Protection | Hot-Dip Galvanized (HDG) |
| Standard Compliance | ISO / ASTM / IEC / BS Standards Compliant |
| Application Scope | Overhead Transmission Lines, Substations & Insulator Link Assemblies |
Key Performance Features
- Precision Drop-Forging: Eliminates internal porosity and structural defects, providing high fatigue resistance against dynamic wind loads.
- Smooth Contour Design: Smoothly rounded body and pin holes minimize mechanical stress concentration and prevent excessive wear on connected hardware.
- Long-Term Anti-Corrosion: Heavy zinc coating protects against humidity, industrial pollution, and coastal salt spray environments.
Quality Assurance
Every batch of U-shackles manufactured by YiHao Power undergoes strict quality control, including non-destructive flaw testing, dimensional checks, and zinc coating thickness inspection.
