Product Overview

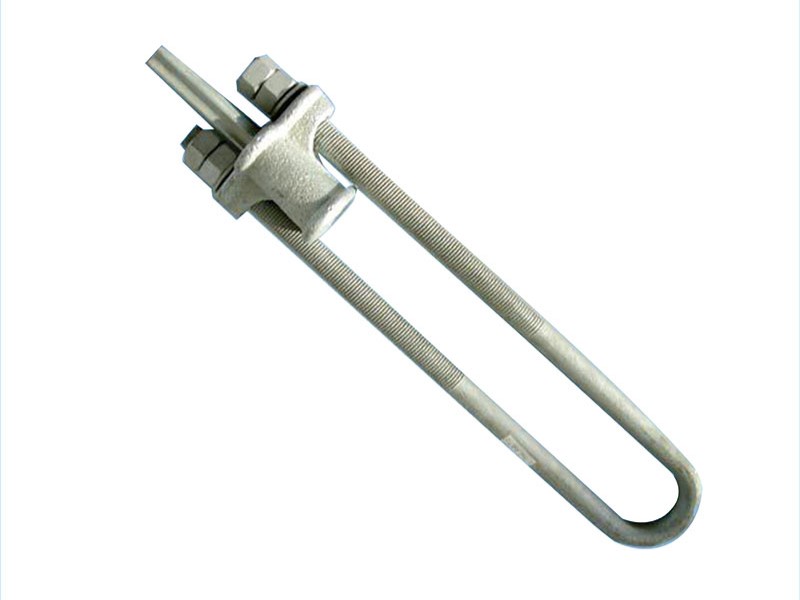

The UT Type Adjustable Clamp (UT-1, UT-2, UT-3, and UT-4 Series Wedge Guy Clamp) is a standard anchoring and tensioning hardware used in overhead power transmission, telecommunications, and distribution networks. Manufactured by YiHao Power, these fittings connect guy strands to anchor stay rods on wooden, concrete, or steel poles. The combination of a self-locking wedge socket and adjustable threaded U-bolt guarantees mechanical stability and precise stay wire tensioning over time.
Technical Specifications
| Parameter | Specification |
|---|---|

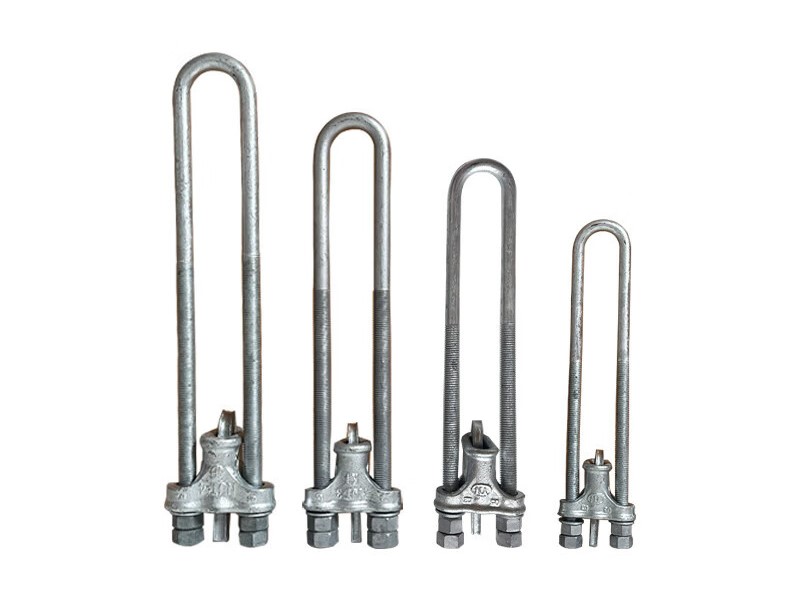

| Product Series | UT-1 / UT-2 / UT-3 / UT-4 Series Clamps |
| Body Material | Malleable Cast Iron / Carbon Steel (Q235) |
| U-Bolt & Fasteners | High-Tensile Carbon Steel with Threaded Legs |
| Surface Protection | Hot-Dip Galvanized (HDG) to ASTM A153 / ISO 1461 |
| Standard Compliance | ISO / ASTM / IEC / BS Standards Compliant |
| Application Scope | Utility Pole Guy Wires, Telecom Towers & Stay Rod Assemblies |
Key Performance Features
- High Holding Force: Internal wedge action grips galvanized steel guy strands tighter as line tension increases, preventing cable slippage.
- Adjustable Thread Length: Extra-long U-bolt legs provide ample adjustment distance to compensate for cable stretch during long-term service.
- All-Weather Anti-Corrosion Protection: Heavy hot-dip galvanizing protects against rust, soil moisture, and harsh atmospheric weathering.
Quality Assurance
Every batch of UT type clamps manufactured by YiHao Power undergoes strict quality control, including mechanical ultimate tensile strength testing, thread fit inspection, and galvanizing coating thickness checks.
